Aluminium Carbon Anode Prebaked (instead of foundry coke)

  • Aluminium Carbon Anode Prebaked (instead of foundry coke)
  • Aluminium Carbon Anode Prebaked (instead of foundry coke)
  • Aluminium Carbon Anode Prebaked (instead of foundry coke)
  • Aluminium Carbon Anode Prebaked (instead of foundry coke)

Aluminium Carbon Anode Prebaked (instead of foundry coke)

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 20 Metric Ton
    Delivery Time: 10-15 Days
    Packaging: Wooden pallet
    Productivity: 80000mt/year
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 80000ton/Year
    Certificate: ISO 9001-2015
    Port: Tianjin Port,Qingdao Port

Basic Info

Model No.: PBA

Product Description

Aluminium Carbon Anode Prebaked (instead of Foundry Coke)


High purity, low ash content, its C content is over 99.9%, it is a good choice of making crucible and other high quality products. .It has low ash,high thermal stability and high thermal conductive.It could be used in arc furnace as heat element. The using life is longer than the metal. And it has good oxidation resistance. It is easy to install and reduce the cost. Our graphite block also could used as raw material. It could be make crucible,mould and other graphite products.
Its quality is very important to the electrolysis aluminum production process,george and directly influence the quality of the original aluminum.

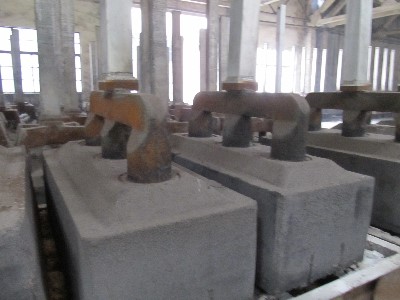

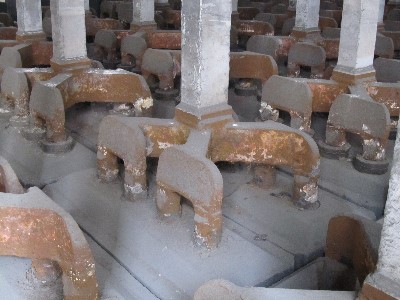

Pre-baked anode Carbon ,one of the main raw materials in electrolysis aluminum production.


AGF

REAGT

Carbographite has 28 years Carbon&Graphite product manufacture experience since 1991 in China.


Provide UHP Graphite Electrode, HP graphite electrode, RP graphite electrode,

Electrode Paste, carbon additive, Refractory goods.


Products export to Pakistan, Malaysia, Russia, Oman, Iran, Egypt, Czech Republic, Slovenia, etc.

If you are looking for first-rate graphite electrodes, consider our wide selection. For ladle furnaces, foundries, and EAFs, we provide RP, HP and UHP grade graphite. Regardless of your furnace application, we have the graphite electrode solution you need.



Parameter details:

Item Ash
Resistivity
Compression strength
Density
True Density

% Ω·mm2/m N/mm2 g/cm3 g/cm3
TY-1 0.5 55 29 1.5 2
TY-2 1.2 63 29 1.5 2


Item Unit Data range
Density g/cm3 1.53-1.58
Resistivity Ωmm2/m 52-60
Compression strength Mpa 40-48
Bending strength Mpa 5--12
CTE 10-6/K 3.5-4.0
Thermal Conductivity Coefficient W/mK 3.5-4.5
Permeability Npm 0.5-1.5
CO2 Reaction allowance % RDC 84-92
Air reaction allowance % RDC 70-85
S % 1.2-2.4
V ppm 80-350
Si ppm 100-300
Fe ppm 100-500
Na ppm 250-600
etrghy thq

THY


The Application of Prebaked Carbon Anode

1. Molds: hot pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, fused refractory molds, etc.
2. Furnace parts: resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.
3. Anodes for the electrolysis of metals.
4. Cathodes in aluminum electrolysis cells.
5. Parts for heat exchangers.
6. Crucibles for melting and reduction.
7. Boats and trays for sintering.
8. Magnesium electrolysis and Nickel electrolysis
9.Anode block,carbon block can perfectly instead of foundry coke in costing foundry.

hqrae

dsgv

earftghy



Why Choose Us

1. 20 years experience in graphite field
2. Superior quality with competitive price
3. Short delivery time
4. Length upon customer's requirement
5.Enough stock
6. Good after-sale service
